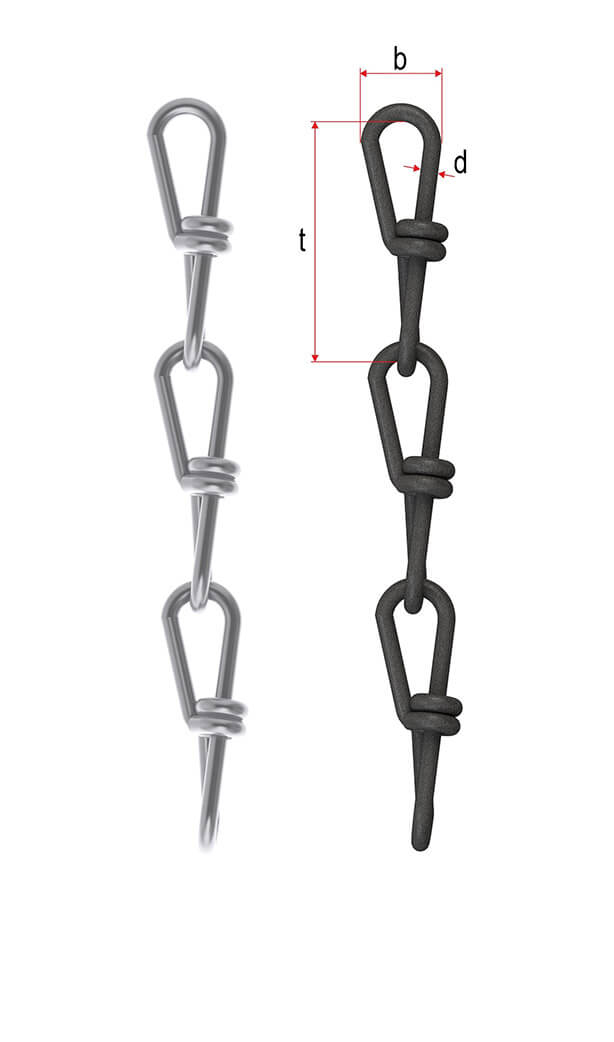

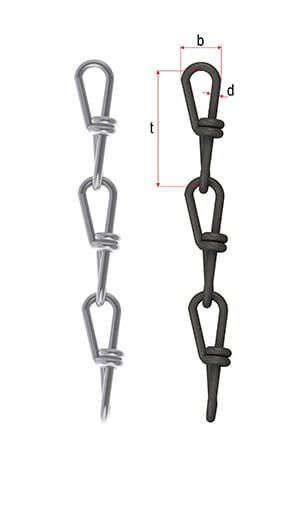

DIN Standard Ketten
| Force Chain | Wire Diameter | Inner Length | Inside Width | Appr. | |||
|---|---|---|---|---|---|---|---|
| Articel No | Ø(dn) | Tolerance | t | Tolerance | b1 min. | Kg / Mtr | |
| FC.5686.D.R.01.W | 1 | ± 0,10 | 14 | + 1,0 | - 1,0 | 4,5 | 0,02 |
| FC.5686.D.R.012.W | 1,2 | ± 0,10 | 17 | + 1,0 | - 1,0 | 5,5 | 0,03 |
| FC.5686.D.R.014.W | 1,4 | ± 0,10 | 20 | + 1,0 | - 1,0 | 6,5 | 0,04 |
| FC.5686.D.R.016.W | 1,6 | ± 0,10 | 22 | + 2,0 | - 2,0 | 7,0 | 0,05 |
| FC.5686.D.R.018.W | 1,8 | ± 0,10 | 25 | + 2,0 | - 2,0 | 8,0 | 0,07 |
| FC.5686.D.R.02.W | 2 | ± 0,10 | 28 | + 2,0 | - 2,0 | 9,0 | 0,08 |
| FC.5686.D.R.022.W | 2,2 | ± 0,10 | 31 | + 2,0 | - 2,0 | 10,0 | 0,10 |
| FC.5686.D.R.025.W | 2,5 | ± 0,10 | 35 | + 2,0 | - 2,0 | 11,0 | 0,14 |
| FC.5686.D.R.028.W | 2,8 | ± 0,10 | 39 | + 3,0 | - 3,0 | 13,0 | 0,16 |
| FC.5686.D.R.031.W | 3,1 | ± 0,20 | 40 | + 3,0 | - 3,0 | 14,0 | 0,20 |
| FC.5686.D.R.034.W | 3,4 | ± 0,20 | 44 | + 3,0 | - 3,0 | 15,0 | 0,25 |
| FC.5686.D.R.038.W | 3,8 | ± 0,20 | 46 | + 3,0 | - 3,0 | 17,0 | 0,32 |
| FC.5686.D.R.042.W | 4,2 | ± 0,20 | 50 | + 4,0 | - 4,0 | 19,0 | 0,40 |
| FC.5686.D.R.046.W | 4,6 | ± 0,20 | 55 | + 4,0 | - 4,0 | 21,0 | 0,46 |
| FC.5686.D.R.05.W | 5 | ± 0,30 | 60 | + 4,0 | - 4,0 | 23,0 | 0,53 |
| FC.5686.D.R.055.W | 5,5 | ± 0,30 | 66 | + 5,0 | - 5,0 | 25,0 | 0,65 |
