DIN Standard Ketten

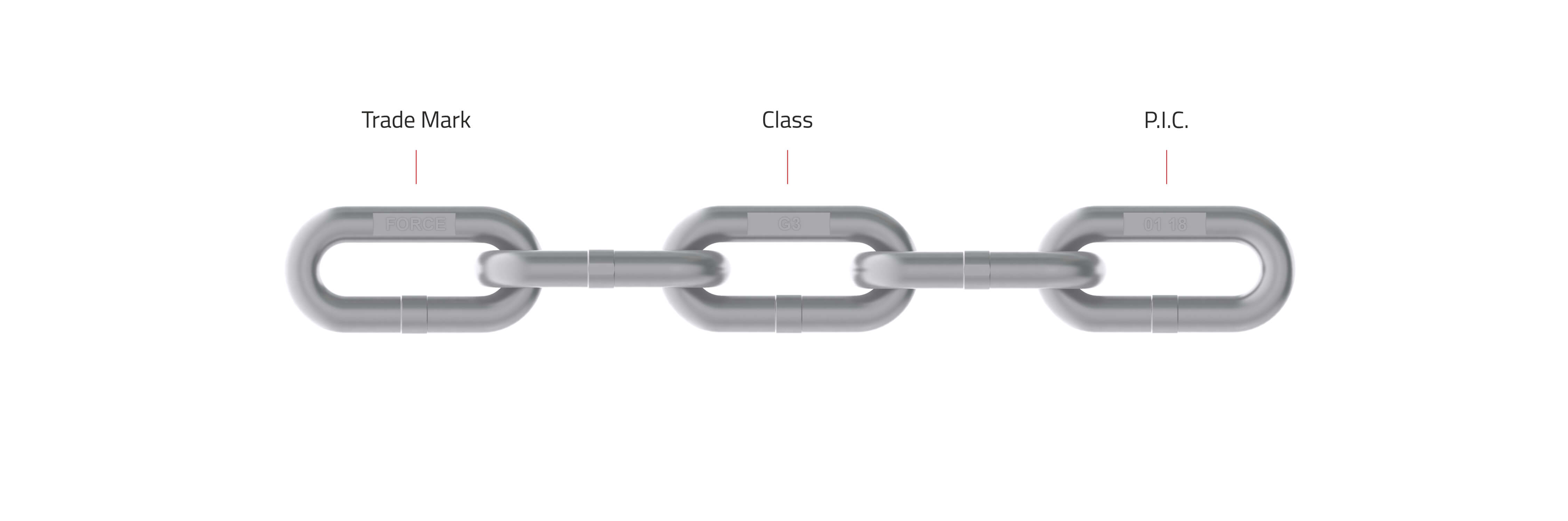

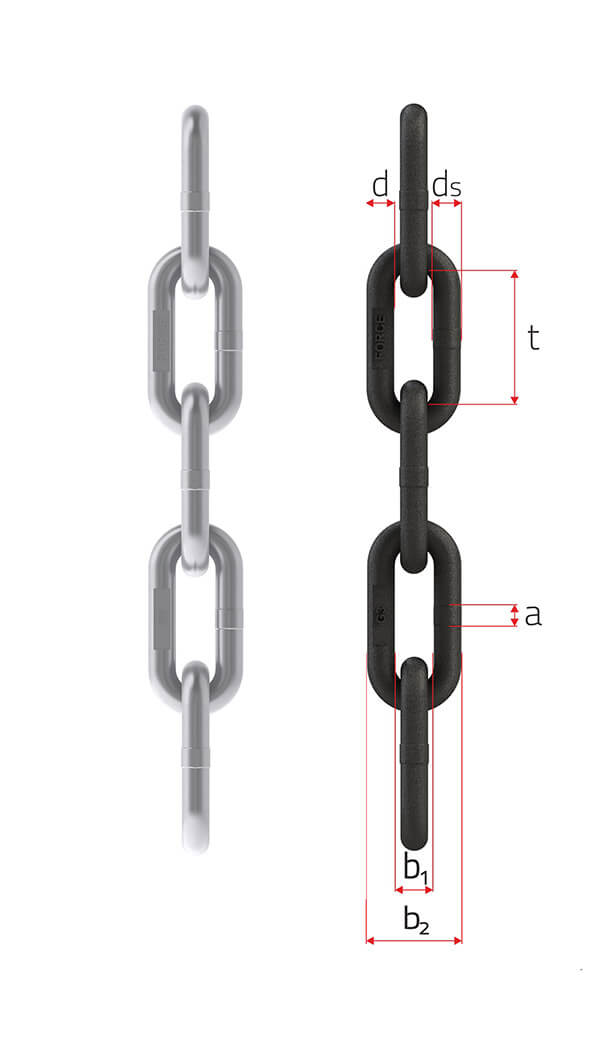

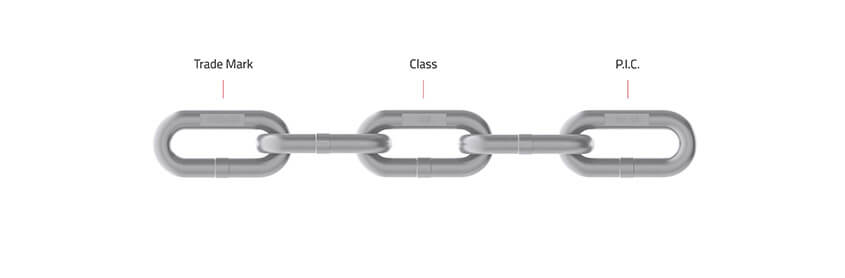

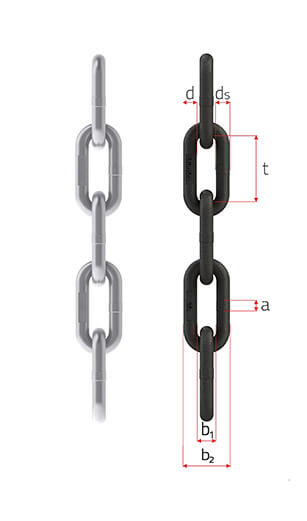

| Force Chain | Wire Diameter | Inner Length | Inside Width | Outside Width | Inner Length | Appr. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Articel No | Ø(dn) | Tolerance | t | Tolerance | b1 min. | b2 max. | 11 x t | Tolerance | Kg / Mtr | ||
| FC.762.DG3.R.10.W | 10 | ± 0,40 | 50 | + 0,8 | - 0,4 | 14,0 | 36,0 | 550,0 | + 3,9 | - 2,2 | 1,80 |
| FC.762.DG3.R.13.W | 13 | ± 0,50 | 65 | + 1,0 | - 0,5 | 18,2 | 46,8 | 715,0 | + 5,0 | - 2,9 | 3,10 |
| FC.762.DG3.R.16.W | 16 | ± 0,60 | 80 | + 1,3 | - 0,6 | 22,4 | 57,6 | 880,0 | + 6,2 | - 3,5 | 4,70 |
| Wire Diameter | Working Load Limit | Test Force | Breaking Load | Bending Test |
|---|---|---|---|---|
| Ø ( dn) mm | WLL ( Kg ) max. | MTF ( kN ) | BLL ( kN ) min. | f ( mm ) min. |
| 10 | 10,0 | 25,0 | 50,0 | 10,0 |
| 13 | 16,0 | 40,0 | 80,0 | 13,0 |
| 16 | 25,0 | 63,0 | 125,0 | 16,0 |
| Security Level | 1 / 2,5 / 5,0 | ||||||
| Working Load Limit ( WLL ) | 60 N / mm2 | ||||||
| Manufacture Test Force ( MTF ) | 150 N / mm2 | ||||||
| Breaking Load Limit ( BLL ) | 300 N / mm2 |
