DIN Standard Ketten

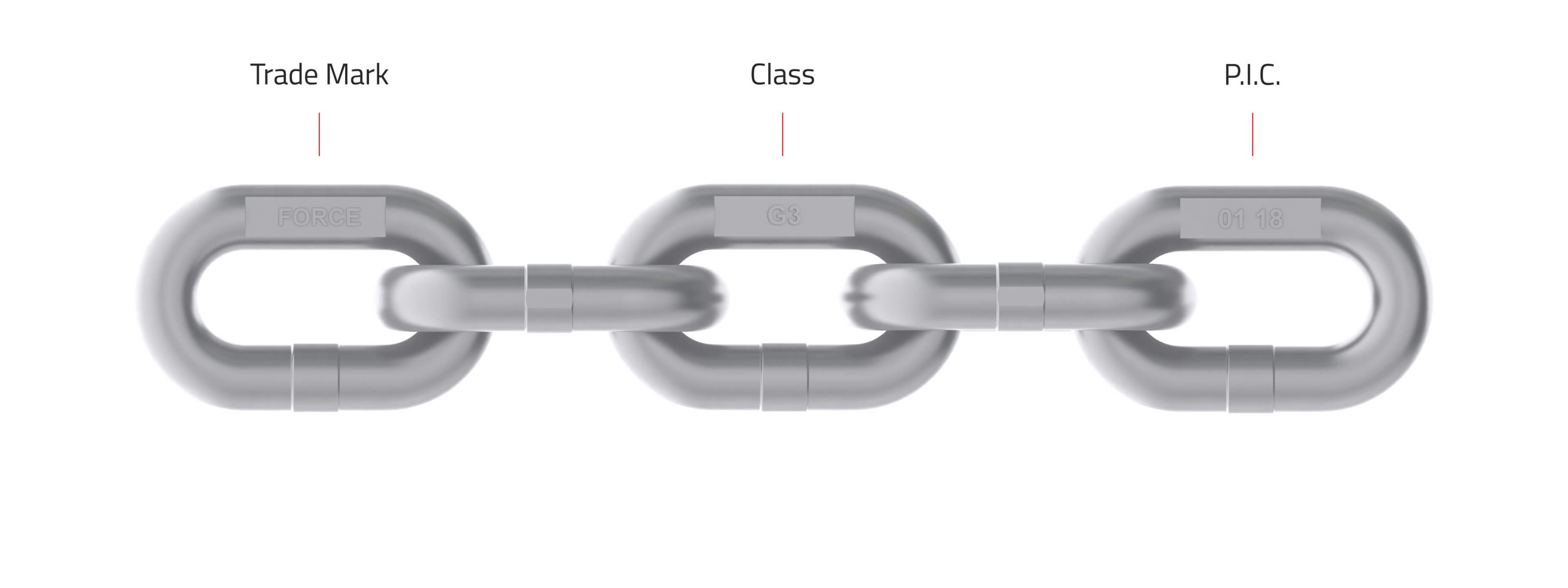

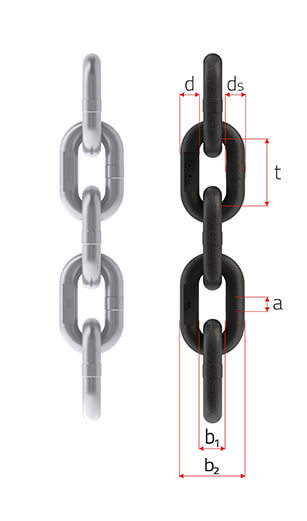

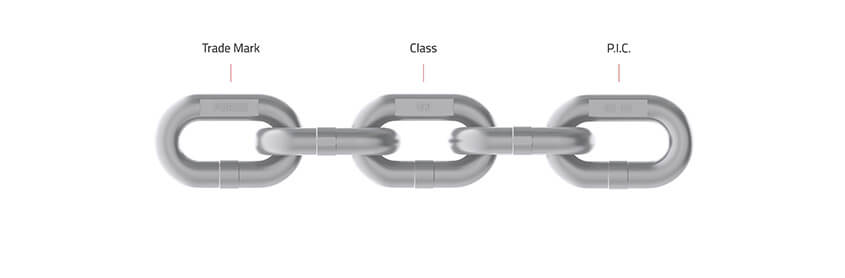

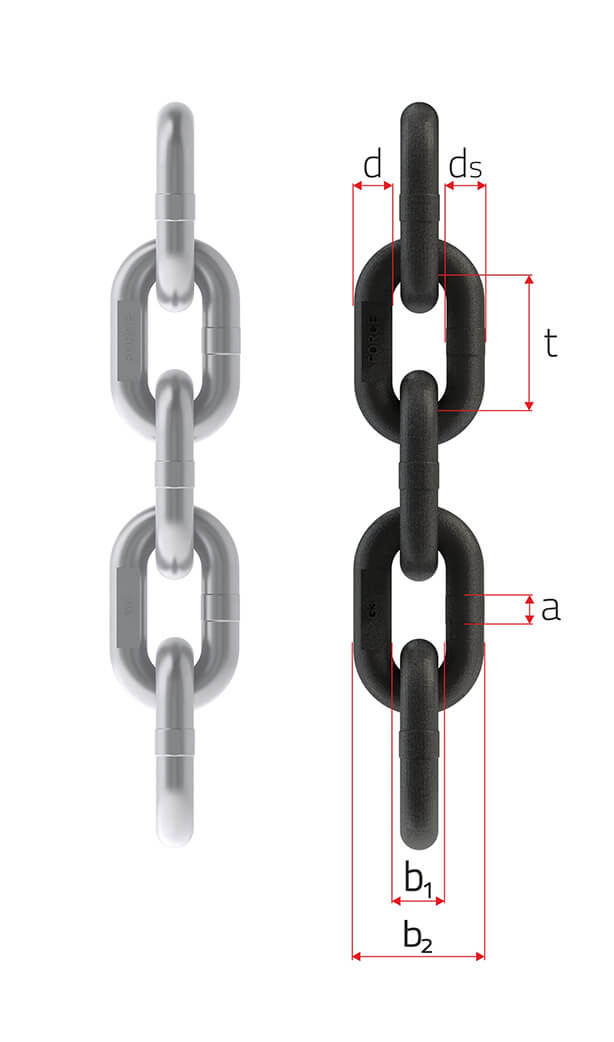

| Force Chain | Wire Diameter | Inner Length | Inside Width | Outside Width | Inner Length | Appr. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Articel No | Ø(dn) | Tolerance | t | Tolerance | b1 min. | b2 max. | 11 x t | Tolerance | Kg / Mtr | ||
| FC.764.DG3.R.10.W | 10 | ± 0,40 | 35 | + 0,6 | - 0,3 | 14,0 | 36,0 | 385,0 | + 1,7 | - 0,9 | 2,00 |
| FC.764.DG3.R.13.W | 13 | ± 0,50 | 45 | + 0,7 | - 0,4 | 18,0 | 47,0 | 495,0 | + 2,2 | - 1,1 | 3,50 |
| FC.764.DG3.R.16.W | 16 | ± 0,60 | 56 | + 0,9 | - 0,5 | 22,0 | 58,0 | 616,0 | + 2,8 | - 1,4 | 5,20 |
| Wire Diameter | Working Load Limit | Test Force | Breaking Load | Bending Test |
|---|---|---|---|---|
| Ø ( dn) mm | WLL ( Kg ) max. | MTF ( kN ) | BLL ( kN ) min. | f ( mm ) min. |
| 10,0 | 12,5 | 32,0 | 50,0 | 10,0 |
| 13,0 | 21,2 | 53,0 | 85,0 | 13,0 |
| 16,0 | 32,0 | 80,0 | 125,0 | 16,0 |
| Security Level | 1 / 2,5 / 4 | ||||||
| Working Load Limit ( WLL ) | 75 N / mm2 | ||||||
| Manufacture Test Force ( MTF ) | 188 N / mm2 | ||||||
| Breaking Load Limit ( BLL ) | 300 N / mm2 |
