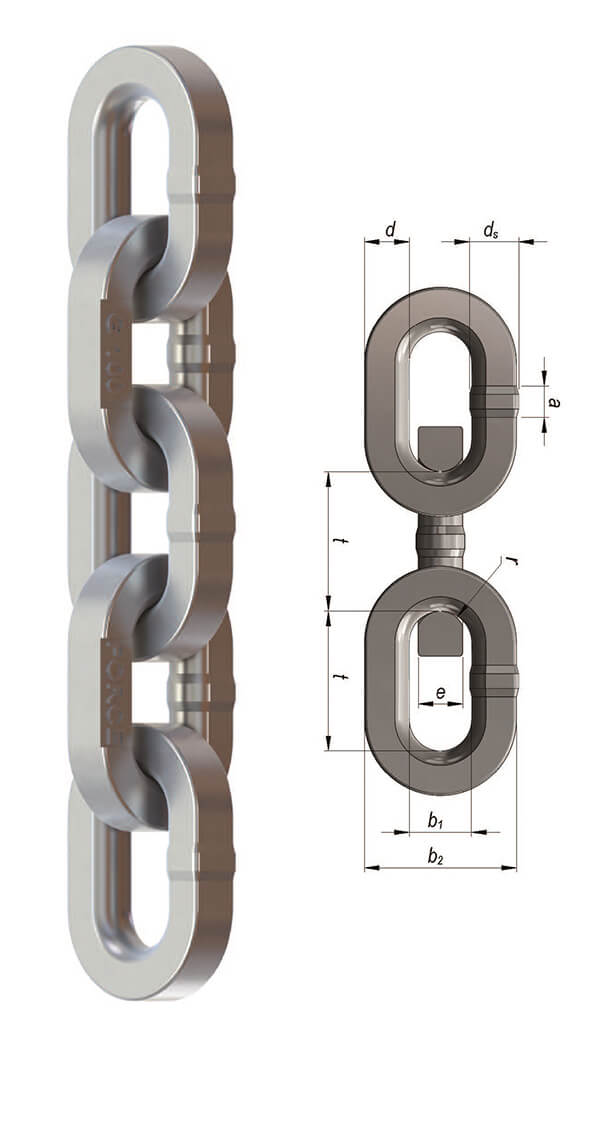

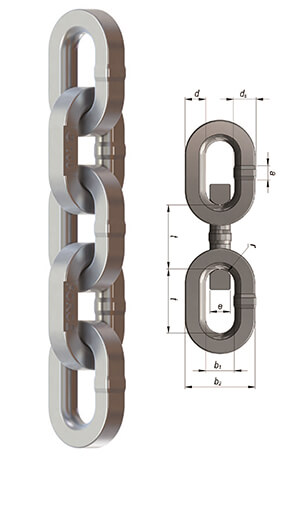

DIN Standard Ketten
| Force Chain | Wire Diameter | Inner Length | Inside Width | Outside Width | Appr. | |||
|---|---|---|---|---|---|---|---|---|
| Articel No | D(dn) | Tolerance | t | Tolerance | b1min. | b2max. | Kg / Mtr | |
| FC.FR.G10.D.07.EP | [ 7 x 7 ] | ± 0,20 | 24 | + 0,2 | - 0,2 | 11,5 | 27,0 | 1,16 |
| FC.FR.G10.D.08.EP | [ 8 x 8 ] | ± 0,20 | 28 | + 0,3 | - 0,3 | 12,5 | 30,0 | 1,80 |
| Wire Diameter | Tensile Force | Test Force | Breaking Load | Bending Test |
|---|---|---|---|---|
| D ( dn) mm | ( kN ) max. | MTF ( kN ) | BLL ( kN ) min. | f ( mm ) min. |
| [ 7 x 7 ] | 40 | 60,0 | 80,0 | 5,6 |
| [ 8 x 8 ] | 60 | 90,0 | 120,0 | 6,4 |
| Security Level | 1 / 1,5 / 2,0 | ||||||
| Tensile Force ( TF ) | 500 N / mm2 | ||||||
| Manufacture Test Force ( MTF ) | 750 N / mm2 | ||||||
| Breaking Load Limit ( BLL ) | 1000 N / mm2 |
