DIN Standard Ketten

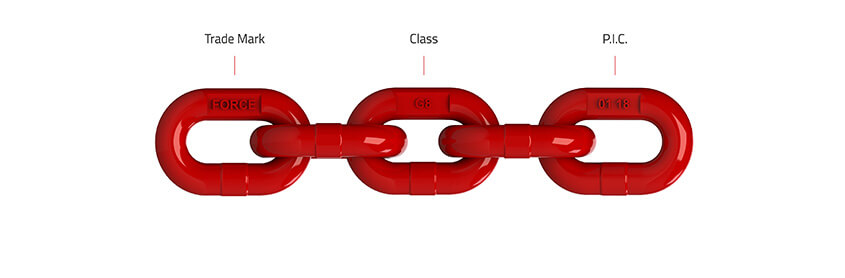

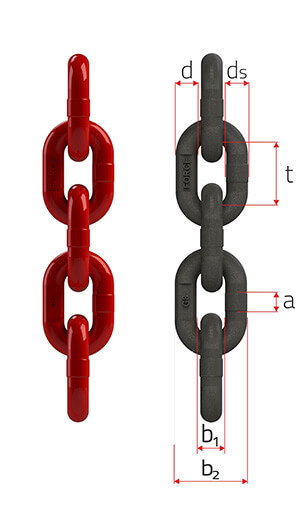

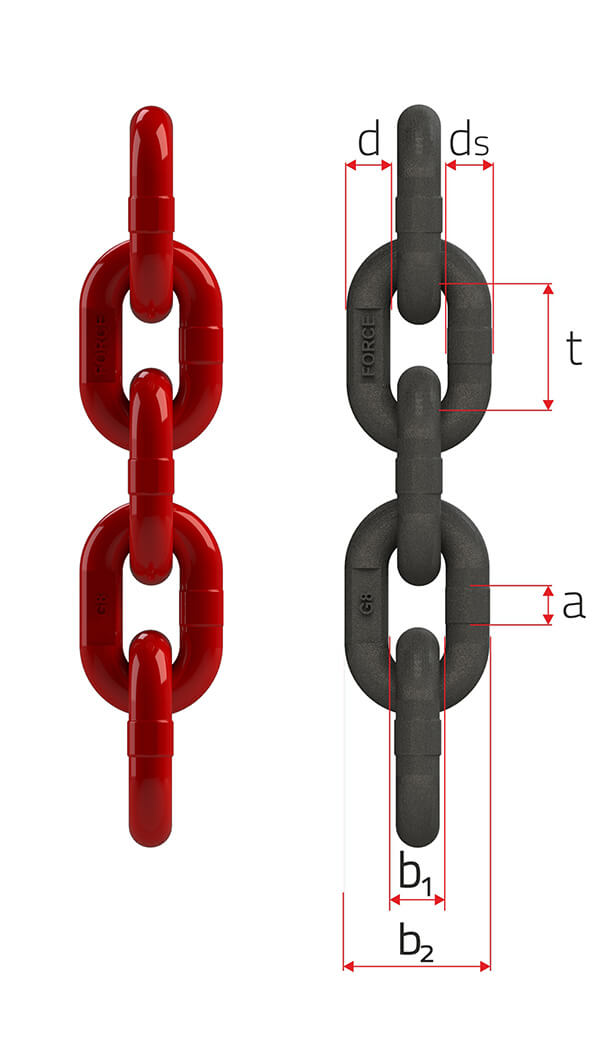

| Force Chain | Wire Diameter | Inner Length | Inside Width | Outside Width | Appr. | ||
|---|---|---|---|---|---|---|---|
| Articel No | Ø(dn) | Tolerance | t | Tolerance | b1min. | b2max. | Kg / Mtr |
| FC.FR.G8.R.06.EP | 6 | ± 0,24 | 18 | ± 0,5 | 7,8 | 22,2 | 0,80 |
| FC.FR.G8.R.07.EP | 7 | ± 0,28 | 21 | ± 0,6 | 9,1 | 25,9 | 1,10 |
| FC.FR.G8.R.08.EP | 8 | ± 0,32 | 24 | ± 0,7 | 10,4 | 29,6 | 1,40 |
| FC.FR.G8.R.10.EP | 10 | ± 0,40 | 30 | ± 0,9 | 13,0 | 37,0 | 2,20 |
| Wire Diameter | Tensile Force | Test Force | Breaking Load | Bending Test |
|---|---|---|---|---|
| Ø( dn) mm | ( kN ) max. | MTF ( kN ) | BLL ( kN ) min. | f ( mm ) min. |
| 6 | 22 | 33,0 | 45,2 | 4,8 |
| 7 | 30 | 45,0 | 61,6 | 5,6 |
| 8 | 40 | 60,0 | 80,4 | 6,4 |
| 10 | 63 | 95,0 | 126,0 | 8,0 |
| Security Level | 1 / 1,5 / 2,0 | ||||||
| Tensile Force ( TF ) | 400 N / mm2 | ||||||
| Manufacture Test Force ( MTF ) | 600 N / mm2 | ||||||
| Breaking Load Limit ( BLL ) | 800 N / mm2 |
