Güteklasse 10 Program
Güteklasse 10 Schmiedeteile

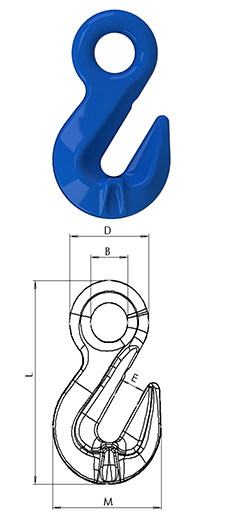

| Force Chain | G100 Chain Diameter | Hook Measurements | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Articel No. | Ø(dn) mm |
Ø(dn) Inch |
WLL (t) |
BLL (t) |
D | Tlrnce | B | Tlrnce | E | Tlrnce | M | Tlrnce | L | Tlrnce |
| 6 | 15/64 | 1,4 | 5,6 | 30,5 | ± 1,5 | 14,5 | ± 1,0 | 8 | ± 1,0 | 43,5 | ± 2,0 | 71 | ± 2,0 | |
| 8 | 5/16 | 2,5 | 10 | 37 | ± 1,5 | 18 | ± 1,0 | 10,8 | ± 1,0 | 53 | ± 2,0 | 91,5 | ± 2,0 | |
| 10 | 3 / 8 | 4 | 16 | 48,5 | ± 1,5 | 22,5 | ± 1,0 | 13,5 | ± 1,0 | 72 | ± 2,0 | 127,5 | ± 2,0 | |
| 13 | 1 / 2 | 6,7 | 26,8 | 59 | ± 1,5 | 28 | ± 1,0 | 16,5 | ± 1,0 | 96 | ± 2,0 | 163 | ± 2,0 | |
| 16 | 5 / 8 | 10 | 40 | 74 | ± 1,5 | 36 | ± 1,0 | 19,2 | ± 1,0 | 112,5 | ± 2,0 | 183 | ± 2,0 | |
