D.I.Y. Program

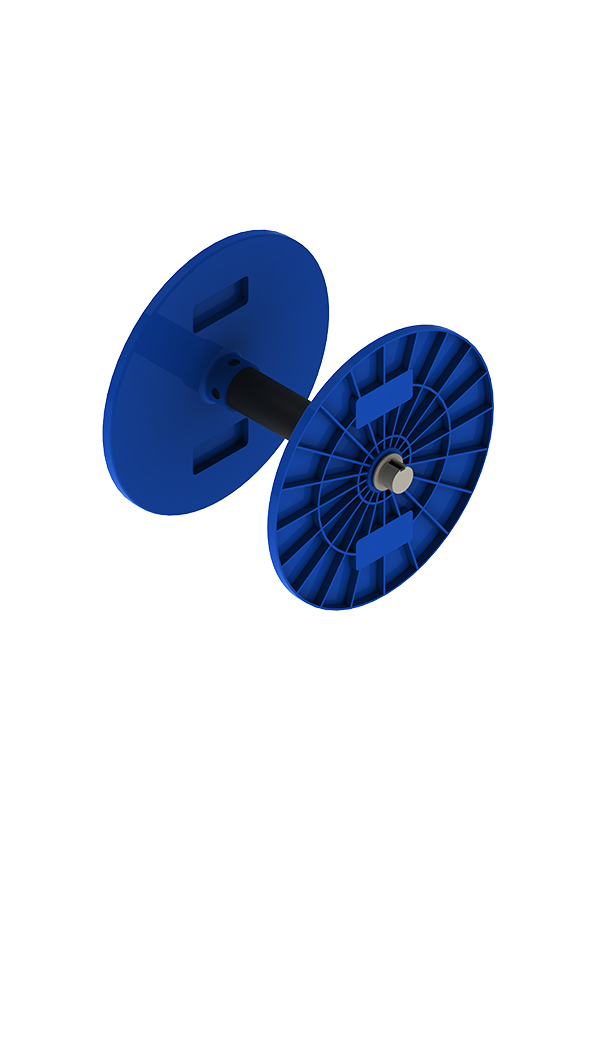

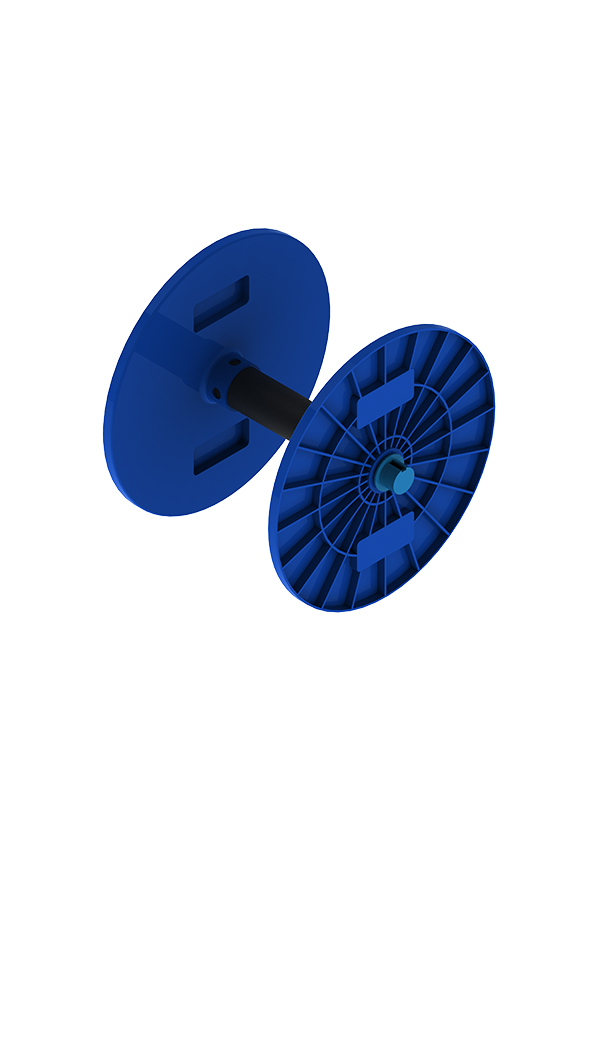

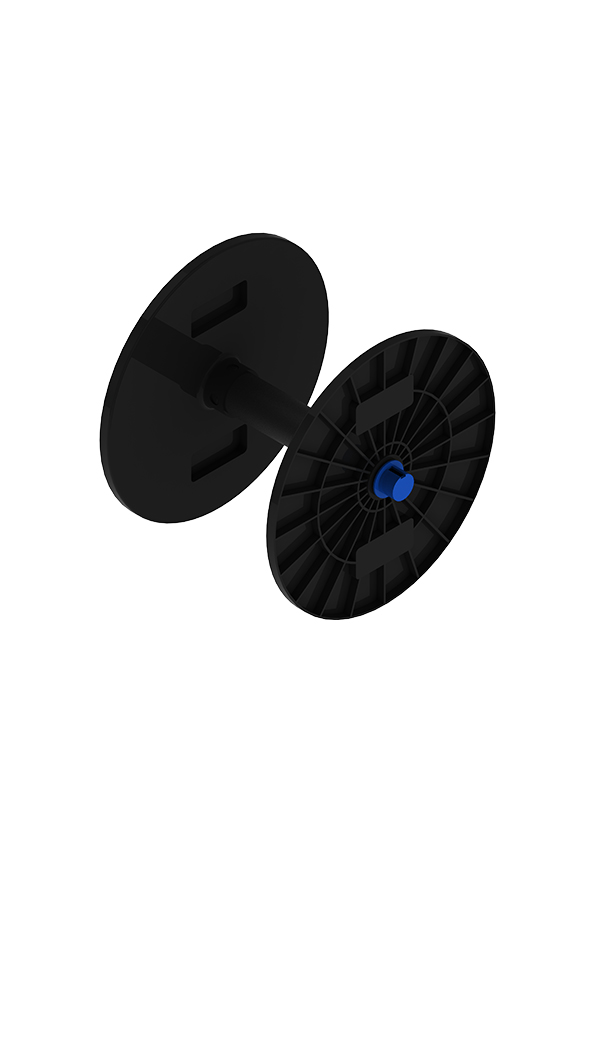

Droop-in Reel
| Pipe length (mm) | Mounting Dimensions | |||
|---|---|---|---|---|
| b | c | d | h | |
| 75 | 105,0 | 63,0 | 10,0 | 37,0 |
| 168 | 198,0 | 156,0 | 10,0 | 37,0 |
| 188,5 | 218,50 | 176,5 | 10,0 | 37,0 |
| 208 | 238,0 | 196,0 | 10,0 | 37,0 |

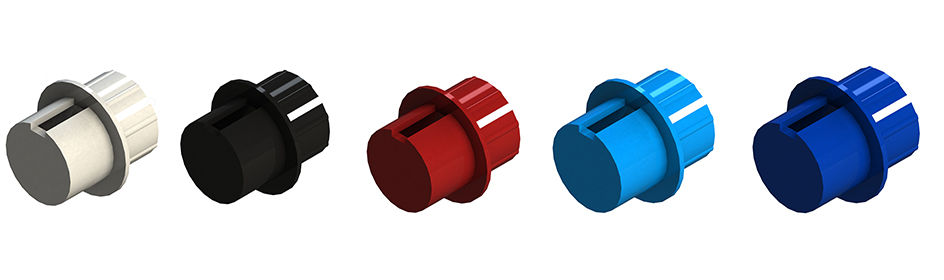

| Pipe length (mm) | Cover Dimensions |
|---|---|
| 250 | |
| 75 | ✓ |
| 168 | ✓ |
| 188,5 | ✓ |
| 208 | ✓ |
