Hebezeug Program
I-hoist
| Model No | Capacity | Chain Falls | Load Chain | Hand Chain (mm) | Standard Lift (mm) | Pull to Rated Load (N) | Weight | Extra Wt. Per metre (kg) | |
|---|---|---|---|---|---|---|---|---|---|
| ( kg ) | ( mm ) | ( mm ) | ( m ) | ( N ) | Net ( kg ) | Gross ( kg ) | ( kg ) | ||
| FCH-0.5 | 500 | 1 | 5 x 15 | 219 | 7,8 | 8,1 | 1,38 | ||
| FCH-1 | 1.000 | 1 | 6 x 18 | 254 | 11,1 | 11,5 | 1,62 | ||
| FCH-1.5 | 1.500 | 1 | 8 x 24 | 351 | 15,8 | 16,2 | 2,23 | ||
| FCH-2 | 2.000 | 1 | 8 x 24 |
5 x 25 x 18 |
3 |
405 | 16,8 | 17,3 | 2,23 |
| FCH-3 | 3.000 | 2 | 8 x 24 | 366 | 24,2 | 24,7 | 3,62 | ||
| FCH-5 | 5.000 | 2 | 10 x 30 | 385 | 39,8 | 40,2 | 5,18 | ||

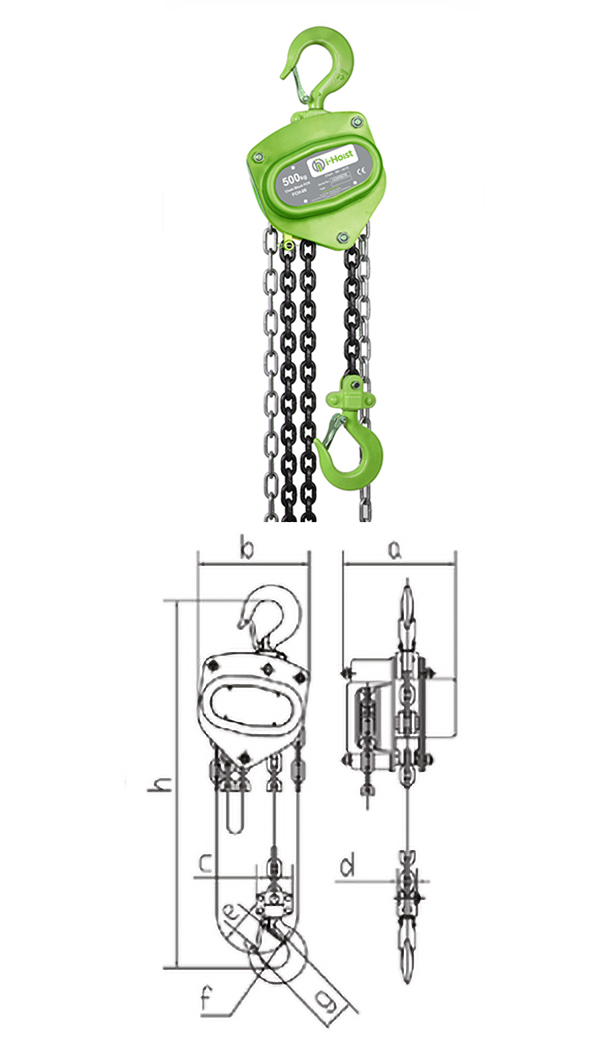

| Capacity ( kg ) | Dimensions ( mm ) | |||||||
|---|---|---|---|---|---|---|---|---|
| a | b | c | d | e | f | g | h | |
| 500 | 125 | 130 | 43 | 25 | 27 | 32 | 35 | 280 |
| 1000 | 134 | 155 | 51 | 30 | 33 | 40 | 45 | 306 |
| 1500 | 151 | 173 | 64 | 34 | 33,5 | 42 | 47 | 368 |
| 2000 | 157 | 185 | 64 | 34 | 37 | 46 | 52 | 445 |
| 3000 | 157 | 235 | 100 | 56 | 43,5 | 52 | 62,5 | 520 |
| 5000 | 180 | 262 | 126 | 74 | 51 | 60 | 79 | 600 |
