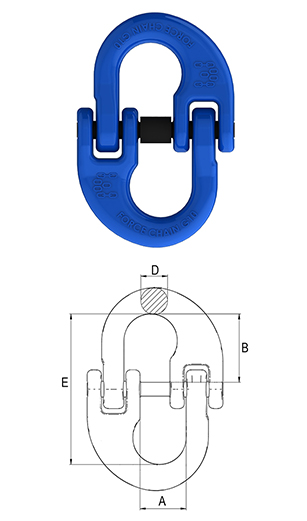

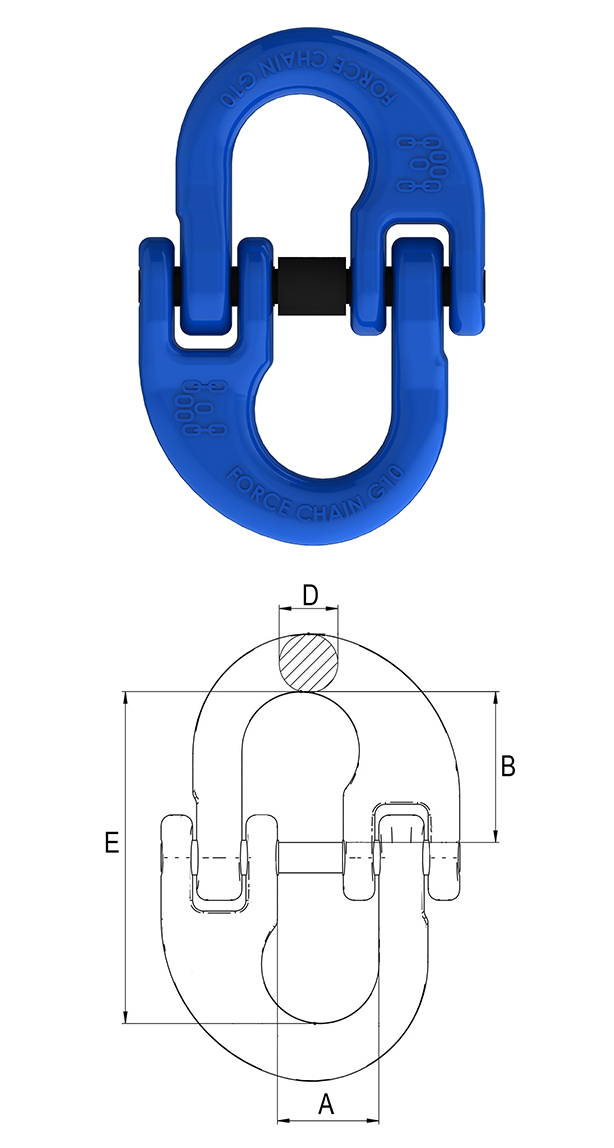

| G100 Chain Diameter | Connecting Link Measurements | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ø (dn) mm | Ø (dn) Inch | WLL (t) | BLL (t) | A | Tolerance | B | Tolerance | D | Tolerance | E | Tolerance | ||||||||||
| 6 | 15/64 | 1,4 | 5,6 | 14,0 | ± 1,5 | 20,8 | ± 2,5 | 5,7 | ± 1,0 | 44,5 | ± 2,0 | ||||||||||
| 8 | 5/16 | 2,5 | 10,0 | 18,5 | ± 1,5 | 30,8 | ± 2,5 | 10,0 | ± 1,0 | 63,1 | ± 2,0 | ||||||||||
| 10 | 3/8 | 4,0 | 16,0 | 23,0 | ± 1,5 | 36,0 | ± 2,5 | 12,6 | ± 1,0 | 71,6 | ± 2,0 | ||||||||||
| 13 | 1/2 | 6,7 | 26,8 | 27,5 | ± 1,5 | 44,5 | ± 2,5 | 16,5 | ± 1,0 | 93,4 | ± 2,0 | ||||||||||
