Güteklasse 10 Program

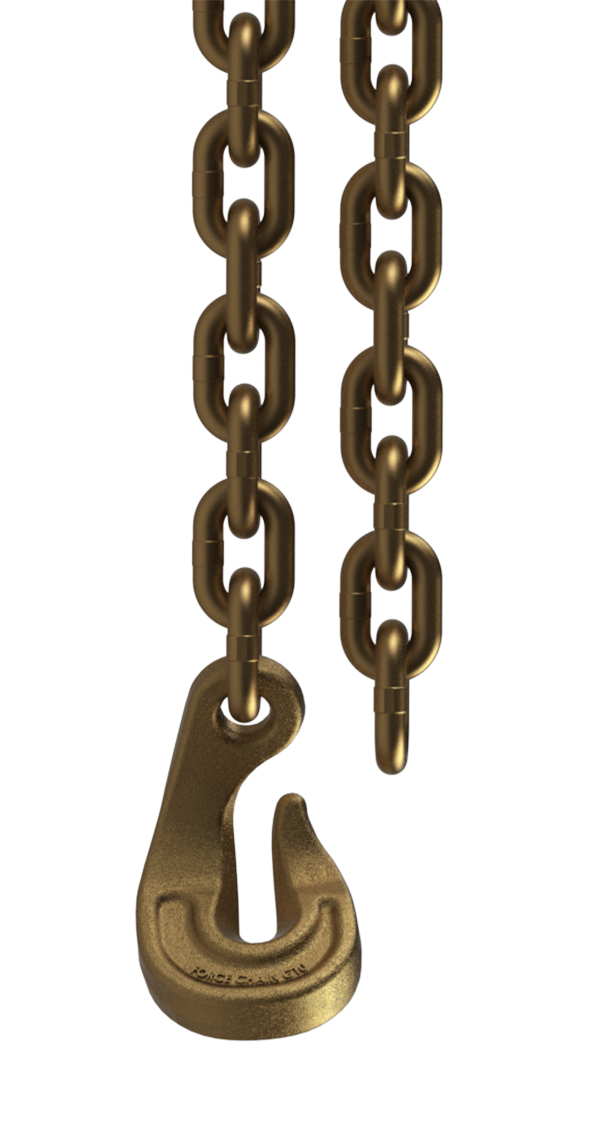

Güteklasse 10 Ketten
| G100 Chain Diameter | Length | Working Load Limit | Test Force | Breaking Load | |||||
|---|---|---|---|---|---|---|---|---|---|
| Ø(dn) mm | Mtr | WLL ( t ) | MTF ( kN ) | BLL ( kN ) min. | |||||
| 7 | 2,80 | 1,90 | 48,1 | 77,0 | |||||
| 7 | 5,60 | 1,90 | 48,1 | 77,0 | |||||
| 8 | 2,80 | 2,50 | 62,8 | 101,0 | |||||
| 8 | 5,60 | 2,50 | 62,8 | 101,0 | |||||
| 10 | 2,80 | 4,00 | 98,1 | 157,0 | |||||
| 10 | 5,60 | 4,00 | 98,1 | 157,0 | |||||
| 13 | 2,80 | 6,70 | 166,0 | 265,0 | |||||
| 13 | 5,60 | 6,70 | 166,0 | 265,0 |
