Güteklasse 10 Program
Güteklasse 10 Schmiedeteile

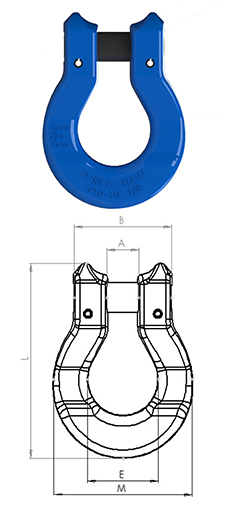

| Force Chain | G100 Chain Diameter | Hook Measurements | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Articel No. | Ø(dn) mm |
Ø(dn) Inch |
WLL (t) |
BLL (t) |
A | Tlrnce | B | Tlrnce | E | Tlrnce | M | Tlrnce | L | Tlrnce |
| 6 | 15/64 | 1,4 | 5,6 | 5,6 | ± 0,5 | 32,5 | ± 2,0 | 20 | ± 1,5 | 44 | ± 2,0 | 55 | ± 2,0 | |
| 8 | 5/16 | 2,5 | 10 | 10,5 | ± 0,5 | 42 | ± 2,0 | 24 | ± 1,5 | 60 | ± 2,0 | 73,5 | ± 2,0 | |
| 10 | 3/8 | 4 | 16 | 12,5 | ± 0,5 | 48,5 | ± 2,0 | 31 | ± 1,5 | 70 | ± 2,0 | 90 | ± 2,0 | |
| 13 | 1/2 | 6,7 | 26,8 | 16 | ± 0,5 | 60 | ± 2,0 | 38,5 | ± 1,5 | 90 | ± 2,0 | 109 | ± 2,0 | |
| 16 | 5/8 | 10 | 40 | 19 | ± 0,5 | 75,5 | ± 2,0 | 51 | ± 1,5 | 112 | ± 2,0 | 141,5 | ± 2,0 | |
