Güteklasse 10 Program
Güteklasse 10 Schmiedeteile

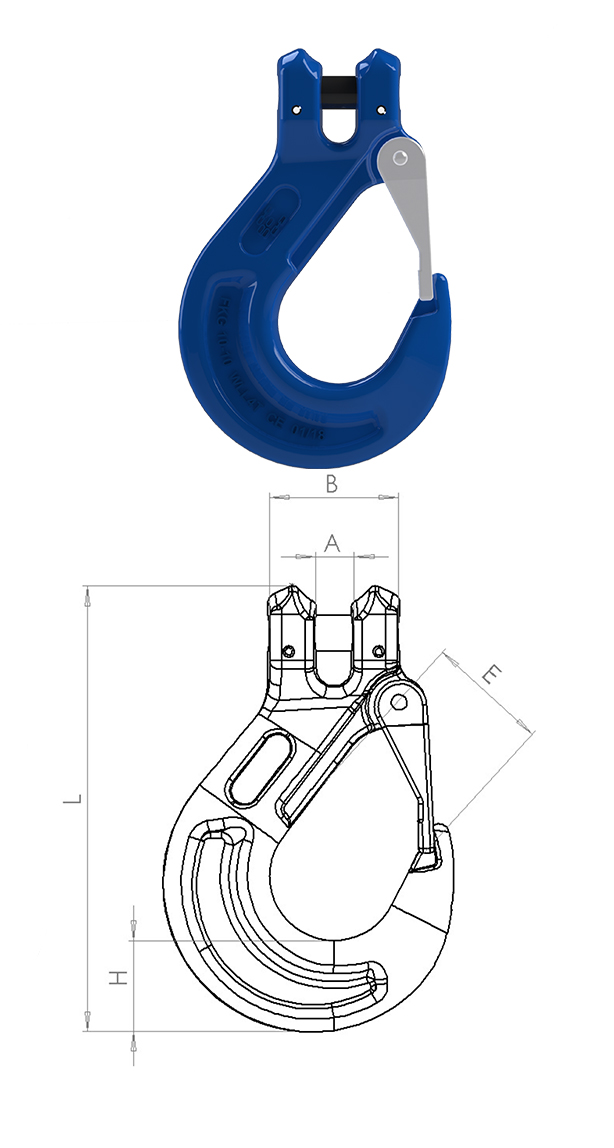

| Force Chain | G100 Chain Diameter | Hook Measurements | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Articel No. | Ø(dn) mm |
Ø(dn) Inch |
WLL (t) |
BLL (t) |
A | Tlrnce | B | Tlrnce | E | Tlrnce | M | Tlrnce | L | Tlrnce | H | Tlrnce |
| 6 | 15/64 | 1,4 | 5,6 | 7,5 | ± 0,5 | 32 | ± 1,0 | 18,5 | ± 1,5 | 68,5 | ± 2,0 | 109 | ± 2,5 | 21 | ± 1,0 | |
| 8 | 5/16 | 2,5 | 10 | 9,5 | ± 0,5 | 37 | ± 1,0 | 25 | ± 1,5 | 88 | ± 2,0 | 134 | ± 2,5 | 27,5 | ± 1,0 | |
| 10 | 3/8 | 4 | 16 | 12 | ± 0,5 | 48 | ± 1,0 | 28 | ± 1,5 | 105,5 | ± 2,0 | 161,5 | ± 2,5 | 33,5 | ± 1,0 | |
| 13 | 1/2 | 6,7 | 26,8 | 15 | ± 0,5 | 59 | ± 1,0 | 38 | ± 1,5 | 134 | ± 2,0 | 203 | ± 2,5 | 42 | ± 1,0 | |
| 16 | 5/8 | 10 | 40 | 17,5 | ± 0,5 | 70 | ± 1,0 | 44 | ± 1,5 | 160,5 | ± 2,0 | 248 | ± 2,5 | 50 | ± 1,0 | |
