Güteklasse 10 Program
Güteklasse 10 Schmiedeteile

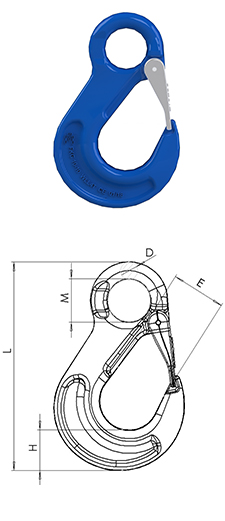

| Force Chain | G100 Chain Diameter | Hook Measurements | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Articel No. | Ø(dn) mm |
Ø(dn) Inch |
WLL (t) |
BLL (t) |
D | Tlrnce | E | Tlrnce | H | Tlrnce | M | Tlrnce | L | Tlrnce |
| 6 | 15/64 | 1,4 | 5,6 | 10 | ± 1,0 | 18,5 | ± 2,0 | 21 | ± 1,0 | 20,5 | ± 1,0 | 111 | ± 2,5 | |
| 8 | 5/16 | 2,5 | 10 | 11 | ± 1,0 | 25 | ± 2,0 | 27,5 | ± 1,0 | 25 | ± 1,0 | 137,5 | ± 2,5 | |
| 10 | 3/8 | 4 | 16 | 16 | ± 1,0 | 28 | ± 2,0 | 33 | ± 1,0 | 34 | ± 1,0 | 171,5 | ± 2,5 | |
| 13 | 1/2 | 6,7 | 26,8 | 19 | ± 1,0 | 38 | ± 2,0 | 43,5 | ± 1,0 | 43 | ± 1,0 | 219 | ± 2,5 | |
| 16 | 5/8 | 10 | 40 | 24,5 | ± 1,0 | 44 | ± 2,0 | 50 | ± 1,0 | 50 | ± 1,0 | 260 | ± 2,5 | |
