Güteklasse 10 Program
Güteklasse 10 Schmiedeteile

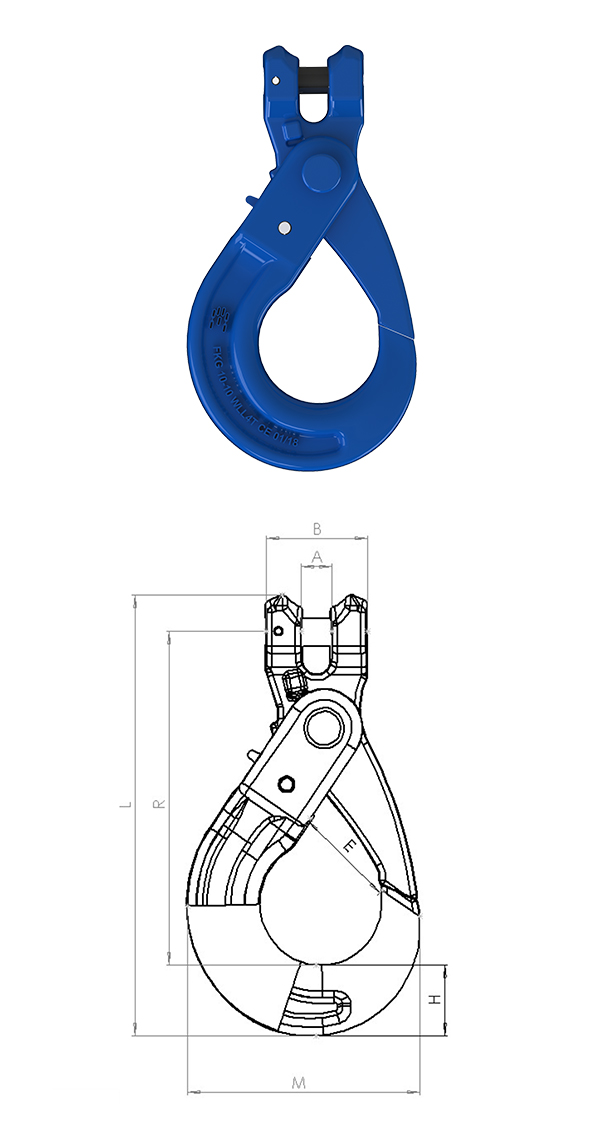

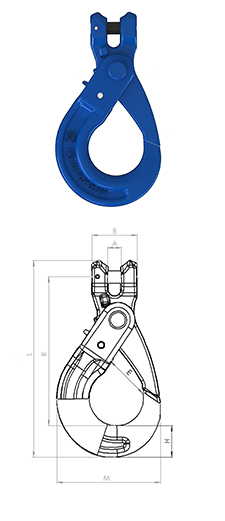

| Force Chain | G100 Chain Diameter | Hook Measurements | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Articel No. | Ø(dn) mm |
Ø(dn) Inch |
WLL (t) |
BLL (t) |
A | Tlrnce | B | Tlrnce | E | Tlrnce | H | Tlrnce | R | Tlrnce | M | Tlrnce | L | Tlrnce |
| 6 | 15/64 | 1,4 | 5,6 | 7,5 | ± 0,5 | 32 | ± 1,5 | 28 | ± 1,0 | 20 | ± 1,0 | 96 | ± 2,0 | 70 | ± 2,0 | 131 | ± 3,0 | |
| 8 | 5/16 | 2,5 | 10 | 9,5 | ± 0,5 | 36 | ± 1,5 | 35,5 | ± 1,0 | 26 | ± 1,0 | 123 | ± 2,0 | 90 | ± 2,0 | 166 | ± 3,0 | |
| 10 | 3/8 | 4 | 16 | 12 | ± 0,5 | 46 | ± 1,5 | 45 | ± 1,0 | 30 | ± 1,0 | 144 | ± 2,0 | 109 | ± 2,0 | 196,5 | ± 3,0 | |
| 13 | 1/2 | 6,7 | 26,8 | 15 | ± 0,5 | 59 | ± 1,5 | 53,5 | ± 1,0 | 40,5 | ± 1,0 | 182 | ± 2,0 | 138,5 | ± 2,0 | 251 | ± 3,0 | |
| 16 | 5/8 | 10 | 40 | 17,5 | ± 0,5 | 70 | ± 1,5 | 62 | ± 1,0 | 50,5 | ± 1,0 | 217 | ± 2,0 | 170,5 | ± 2,0 | 303 | ± 3,0 | |
