Güteklasse 8 Program
Güteklasse 8 Schmiedeteile

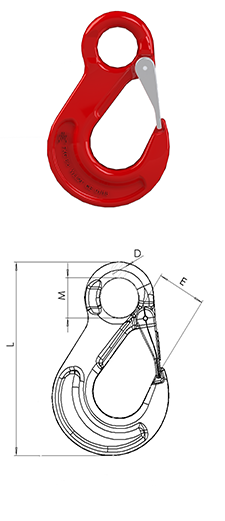

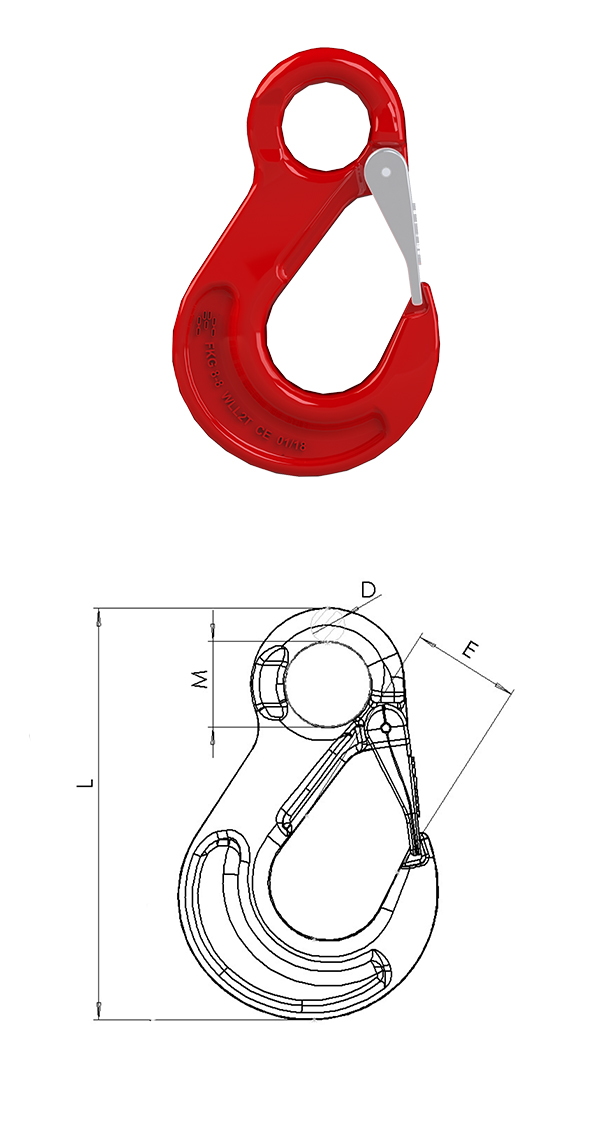

| Force Chain | G80 Chain Diameter | Hook Measurements | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Articel No. | Ø(dn) mm |
Ø (dn) Inch |
WLL (t) |
BLL (t) |
D | Tlrnce | E | Tlrnce | M | Tlrnce | L | Tlrnce | ||
| 6 | 15/64 | 1,2 | 4,48 | 9 | ± 1,0 | 24 | ± 1,0 | 20 | ± 1,0 | 108 | ± 2,0 | |||
| 8 | 5/16 | 2 | 8 | 11 | ± 1,0 | 30 | ± 1,0 | 25 | ± 1,0 | 133 | ± 2,0 | |||
| 10 | 3/8 | 3,15 | 12,6 | 15 | ± 1,0 | 34 | ± 1,0 | 38 | ± 1,0 | 167 | ± 2,0 | |||
| 13 | 1/2 | 5,3 | 21,2 | 19 | ± 1,0 | 39 | ± 1,0 | 43 | ± 1,0 | 213 | ± 2,0 | |||
| 16 | 5/8 | 8 | 32 | 23 | ± 1,0 | 46 | ± 1,0 | 50 | ± 1,0 | 255 | ± 2,0 | |||
