Hebezeug Program

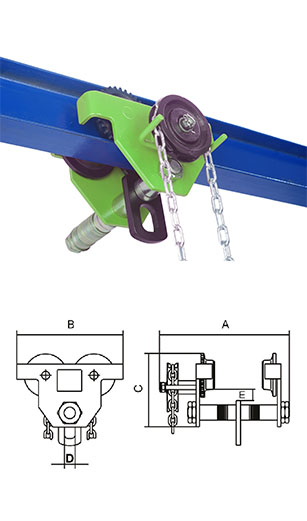

I-hoist
| Model No | Capacity | Proof Load | I-Beam Width | Min. Radius Curve | Net Weight | Dimensions | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| ( kg ) | ( kg ) | ( mm ) | ( m ) | ( kg ) | A | B | C | D | E | |
| FGT-1 | 1000 | 1500 | 1500 | 1,0 | 17 | 344 | 257 | 181 | 30 | 23,5 |
| FGT-2 | 2000 | 3000 | 88-203 | 1,1 | 23,5 | 362 | 300 | 214,5 | 36 | 23,5 |
| FGT-3 | 3000 | 4500 | 100-203 | 1,3 | 38,7 | 383 | 340 | 252 | 45 | 32,5 |
| FGT-5 | 5000 | 7500 | 114-203 | 1,4 | 55,7 | 416 | 380 | 290 | 60 | 28 |
