NACM Grade 80

NACM Grade 80 – Overhead Lifting & Lashing Chains

Document

Print

Sample Request

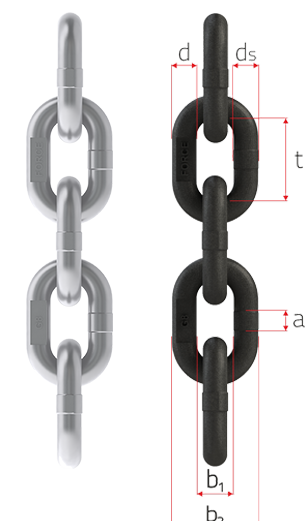

Force Chain	Wire Diameter Ø(d_n)		Inside Length ( max )		Inside Width Range
Articel No.	in	mm	in	mm	in	mm
FC.NACM.G8.R.055.P	0,217 (7/32)	5,5	0,69	17,6	0,281-0,325	7,14-8,25
FC.NACM.G8.R.07.P	0,276 (9/32)	7,0	0,90	22,9	0,375-0,430	9,53-10,92
FC.NACM.G8.R.08.P	0,315 (5/16)	8,0	1,04	26,4	0,430-0,500	10,92-12,70
FC.NACM.G8.R.10.P	0,394 (3/8)	10,0	1,26	32,0	0,512-0,600	13,00-15,20
FC.NACM.G8.R.13.P	0,512 (1/2)	13,0	1,64	41,6	0,688-0,768	17,48-19,50
FC.NACM.G8.R.16.P	0,630 (5/8)	16,0	2,02	51,2	0,812-0,945	20,63-24,00

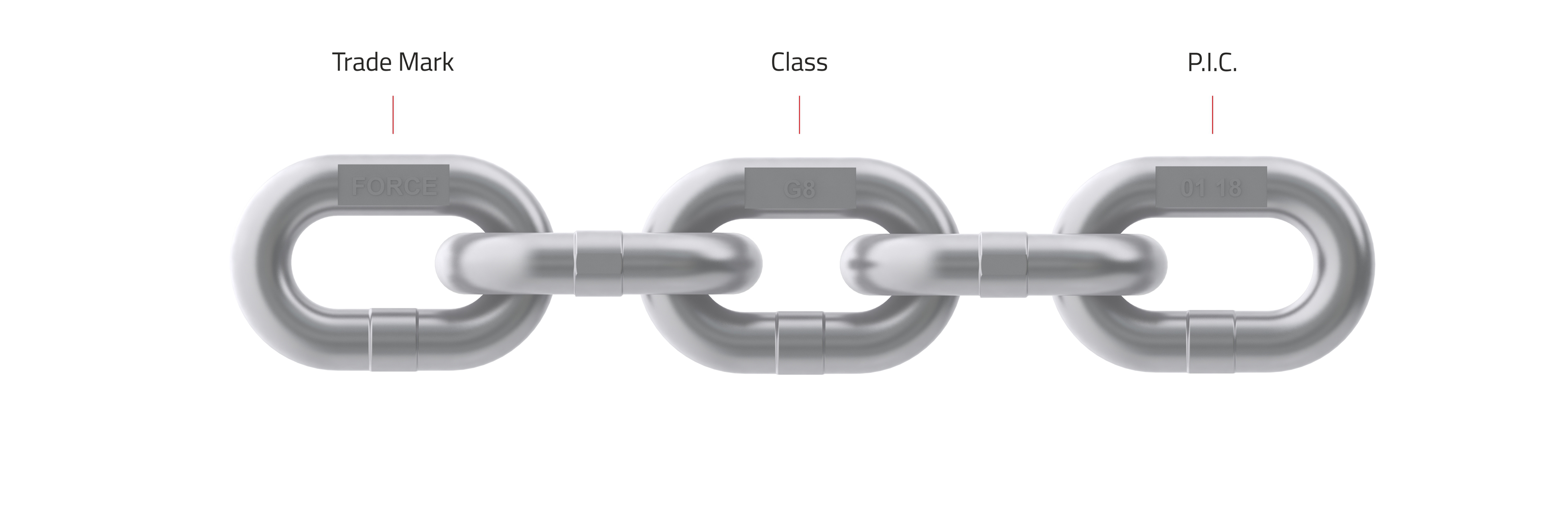

Stamping

Specs

Force Chain	Wire Diameter Ø (d_n)		WLL ( Max. )		Proof Test ( Min. )		Breaking Force ( Min. )
Articel No.	in	mm	Ibs	Kg	Ibs	kN	Ibs	kN
FC.NACM.G8.R.055.P	0,217 (7/32)	5,5	2100	970	4200	19,0	8400	38,0
FC.NACM.G8.R.07.P	0,276 (9/32)	7,0	3500	1570	7000	30,8	14000	61,6
FC.NACM.G8.R.08.P	0,315 (5/16)	8,0	4500	2000	9000	40,3	18000	80,6
FC.NACM.G8.R.10.P	0,394 (3/8)	10,0	7100	3200	14200	63,0	28400	126,0
FC.NACM.G30.R.13.P	0,512 (1/2)	13,0	12000	5400	24000	107,0	48000	214,0
FC.NACM.G30.R.16.P	0,630 (5/8)	16,0	18100	8200	36200	161,0	72400	322,0
