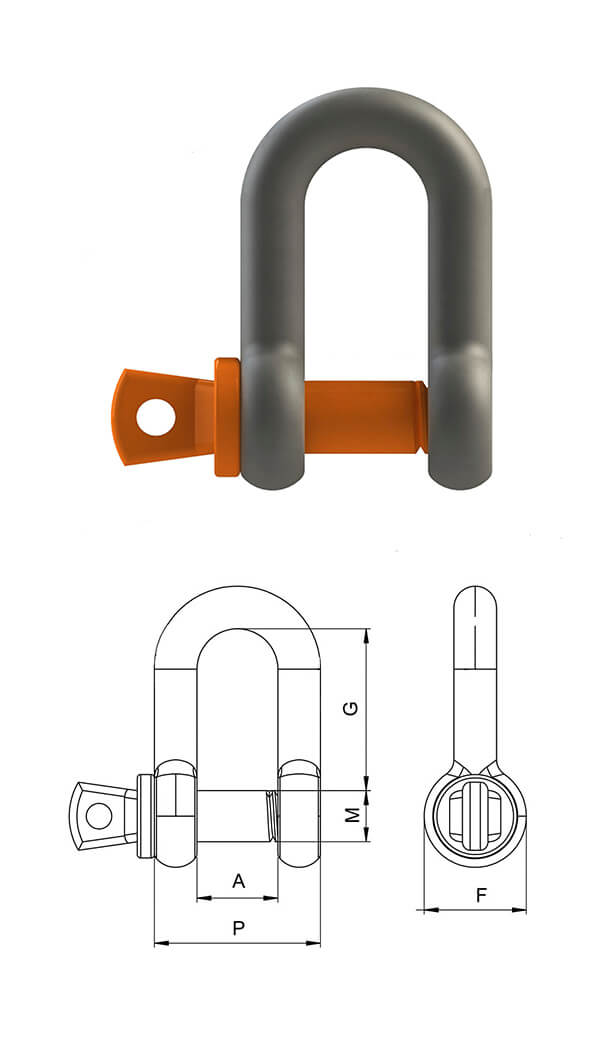

Verbindungselemente Program
| Size | Shackle Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
| mm | A | Tolerance | B | G | D | E | F | P |
| 3/16 | ||||||||
| 1/2 | 20,5 | ±3,3 | 16,0 | 41,0 | 12,7 | 33,1 | 30,0 | 46,0 |
| 5/8 | 27,0 | ±3,3 | 19,0 | 51,0 | 16,0 | 42,0 | 38,0 | 58,9 |
| 3/4 | 31,8 | ±6,3 | 22,1 | 60,0 | 19,0 | 50,8 | 46,0 | 69,8 |
| 7/8 | 36,5 | ±6,3 | 25,0 | 71,0 | 22,0 | 57,9 | 53,0 | 81,0 |
