Verbindungselemente Program

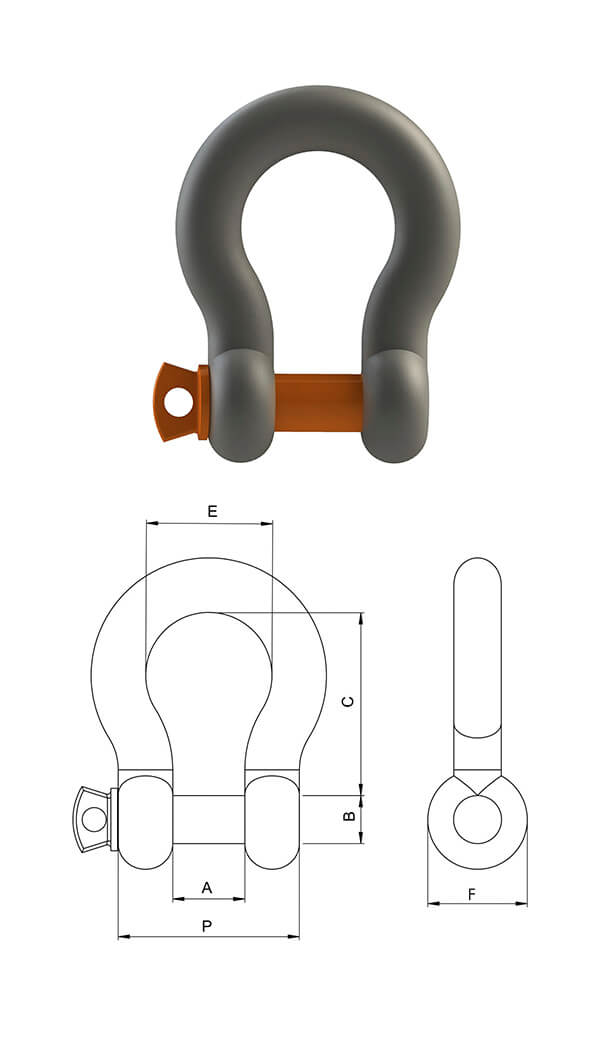

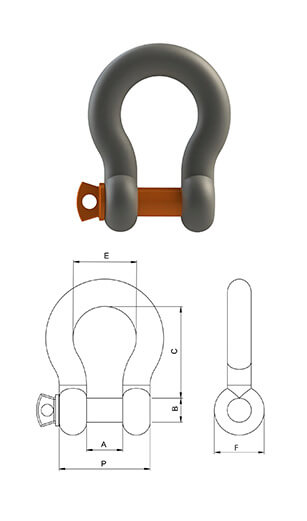

| Size | Shackle Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
| mm | A | Tolerance | B | C | D | E | F | P |
| 3/8 | 16,7 | ±3,3 | 11,1 | 35,7 | 9,7 | 26,2 | 23,0 | 36,0 |
| 7/16 | 19,0 | ±3,3 | 12,7 | 42,2 | 11,2 | 29,5 | 26,9 | 41,4 |
| 1/2 | 20,5 | ±3,3 | 16,0 | 47,8 | 12,7 | 33,1 | 30,0 | 46,0 |
| 5/8 | 27,0 | ±3,3 | 19,0 | 60,5 | 16,0 | 42,0 | 38,0 | 58,9 |
